The anticipated Tesla Powerwall 3 battery storage system is now ready to be paired with new solar installations, existing battery storage systems, or installed as a stand-alone battery backup system.
The Powerwall 3 introduces advancements in battery efficiency, improved cost, easier home integration, and whole-home backup protection.
Space saving: Integrating the solar inverter into the battery storage system eliminates the need for additional space to accommodate a separate inverter. This can be especially beneficial for homeowners with limited space or those looking to maintain a clean and minimalist aesthetic.
Future Proofing: A built-in solar inverter provides future-proofing for the Powerwall3. Software updates and enhancements to the inverter functionality do not require additional hardware upgrades. This ensures that their energy storage system remains up-to-date and compatible with evolving solar technologies.

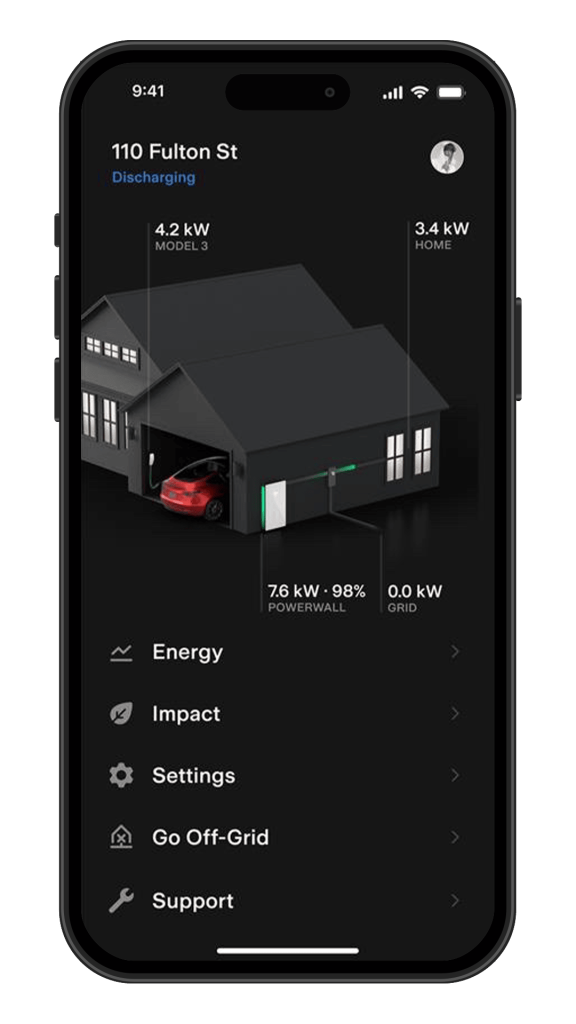

Enhanced Monitoring and Control: The Tesla Powerwall 3 advanced monitoring software can provide real-time insights into both solar generation and battery storage performance, allowing homeowners to optimize their energy management strategies.
Battery Efficiency: By combining the solar inverter with the battery, Powerwall 3 increases the efficiency of converting DC power from the solar panels to AC power necessary to power your home. This optimization results in better energy conversion rates and reduced energy losses.
Increased Continuous Power Output: The Powerwall 3 boasts an impressive 11.5 kW continuous power output, providing a constant power level over time without overheating or negatively affecting its lifespan. This is especially important in a power outage when your backup battery exclusively supplies power to your home.
Increased Peak Power Output: With 30 kW peak power provided by the Powerwall 3, homeowners can rely on just one Powerwall 3, instead of stacking multiple Powerwall 2s.
Streamlined Installation Process: Another significant advantage of the built-in solar inverter is the streamlined installation process. With the Powerwall 3, there’s no need to install a separate solar inverter, reducing the complexity and time required for installation. This simplification can lead to reducing the cost of installing Powerwall 3 as compared to Powerwall 2 and Powerwall +.
Tesla Powerwall 3 Specs Vs Powerwall 2
Feature | Powerwall 2 | Powerwall 3 |
Energy Capacity | 13.5 kWh | 13.5 kWh |
On-Grid Power | 5.8 kW continuous | 11.5 kW continuous |
Peak Power | 7 kW | 30 kW |
Backup Power | 7 kW peak | 11.5 kW continuous |
Size (L x W x D) | 45.30” x 29.6” x 5.75” | 43.25” x 24.0” x 7.60” |
Weight | 251.3 lbs | 287 lbs |
Warranty | 10 year | 10 year |
Scalability | Single size | Up to 40.5 max additional per unit |
Inverter | Not included | Included (6 solar inputs) |
Round Trip Efficiency | 90% | 97.5% |
Tesla Powerwall 3 Technical Upgrades
What Is It?
Continuous power refers to the maximum power the battery can supply constantly. The Powerwall 3 offers 11.5 kW of continuous power, a significant increase from the Powerwall 2’s 5 kW.
Power More Appliances Simultaneously: With this increase, the Powerwall 3 can handle high-demand appliances running at the same time. For example, during a winter storm, you can run your furnace, refrigerator, and even charge your EV without overloading the system.
Homes with larger energy needs, such as those with multiple family members or modern appliances, can rest easy knowing the Powerwall 3 can keep up with daily demands—even during a power outage.
What Is It?
Load start capability measures the battery’s ability to power appliances with high startup energy requirements (like HVAC systems or water pumps). The Powerwall 3 has a much higher load start capability compared to its predecessor.
Reliable Start for High-Demand Appliances: Appliances like air conditioners and heat pumps often require a surge of power to start. The Powerwall 3 can handle these surges effortlessly, ensuring your home remains comfortable during outages or peak usage times.
No Disruptions: Instead of tripping the system or delaying startup, the Powerwall 3 delivers smooth operation for heavy-duty equipment, even under demanding conditions.
What Is It?
The Powerwall 3 supports larger solar system sizes, making it compatible with setups that produce more energy. While the Powerwall 2 supported systems up to around 7.6 kW, the Powerwall 3 allows for significantly larger solar installations.
More Energy, More Savings: If you have a larger solar energy system or plan to expand, the Powerwall 3 ensures you can store and use all the energy your panels generate.
Future-Proof Your System: For homeowners considering solar system upgrades, the Powerwall 3 provides flexibility, allowing you to grow your solar energy system without worrying about storage limitations.
What Is It?
MPPT technology optimizes the energy captured by your solar panels, especially in conditions where sunlight is unevenly distributed across the panels (e.g., partial shading or varying orientations). The Powerwall 3 comes with six MPPTs, compared to fewer in many other battery storage systems.
Maximize Solar Energy: Even if parts of your solar array are shaded (like during the morning or late afternoon), the Powerwall 3 can still capture the maximum energy possible from each panel.
Adaptable to Complex Roofs: If your home has solar panels installed on different roof angles, the Powerwall 3 ensures efficient energy capture from all of them, boosting overall performance and savings.
What Is It?
AC-coupling means the Powerwall 3 can work seamlessly with existing solar systems that use AC inverters. It doesn’t require a complete overhaul of your current solar energy system.
Easier Integration: If you already have a solar energy system, the Powerwall 3 can be added without significant modifications, saving time and money.
Improved Energy Flexibility: AC-coupling allows the Powerwall 3 to store energy from the grid or solar panels, ensuring you always have power when you need it most.
What Is It?
The Powerwall 3 integrates with Tesla’s EV chargers, allowing you to use stored energy from the Powerwall to charge your electric vehicle.
Charge During Outages: During a grid outage, the Powerwall 3 can keep your EV charged, ensuring you’re not stranded in emergencies.
Lower Energy Costs: By charging your EV using solar energy stored in the Powerwall 3, you can significantly reduce your reliance on grid electricity and save on charging costs.
Seamless Ecosystem: If you’re already part of the Tesla ecosystem, the Powerwall 3 and Tesla EV charger work together effortlessly, providing an all-in-one solution for your energy needs.
Why Choose Tesla Powerwall 3
Overall, the integration of a built-in solar inverter in the Tesla Powerwall 3 offers several advantages, including improved efficiency, simplified installation, space savings, enhanced monitoring and control, seamless integration with Tesla solar products, and future-proofing.
Additionally, the increased performance provided by improvements in peak power and continuous power provides more with less, which reduces installation time and the cost of Powerwall 3 installation.
These benefits make the Powerwall 3 a compelling choice for homeowners looking to harness the full potential of their solar energy system.
Contact A&R Solar, a local solar installer and a Tesla Premier Installer for more information about whether Tesla Powerwall 3 is the right choice for your home or business.
